Description
Specifications

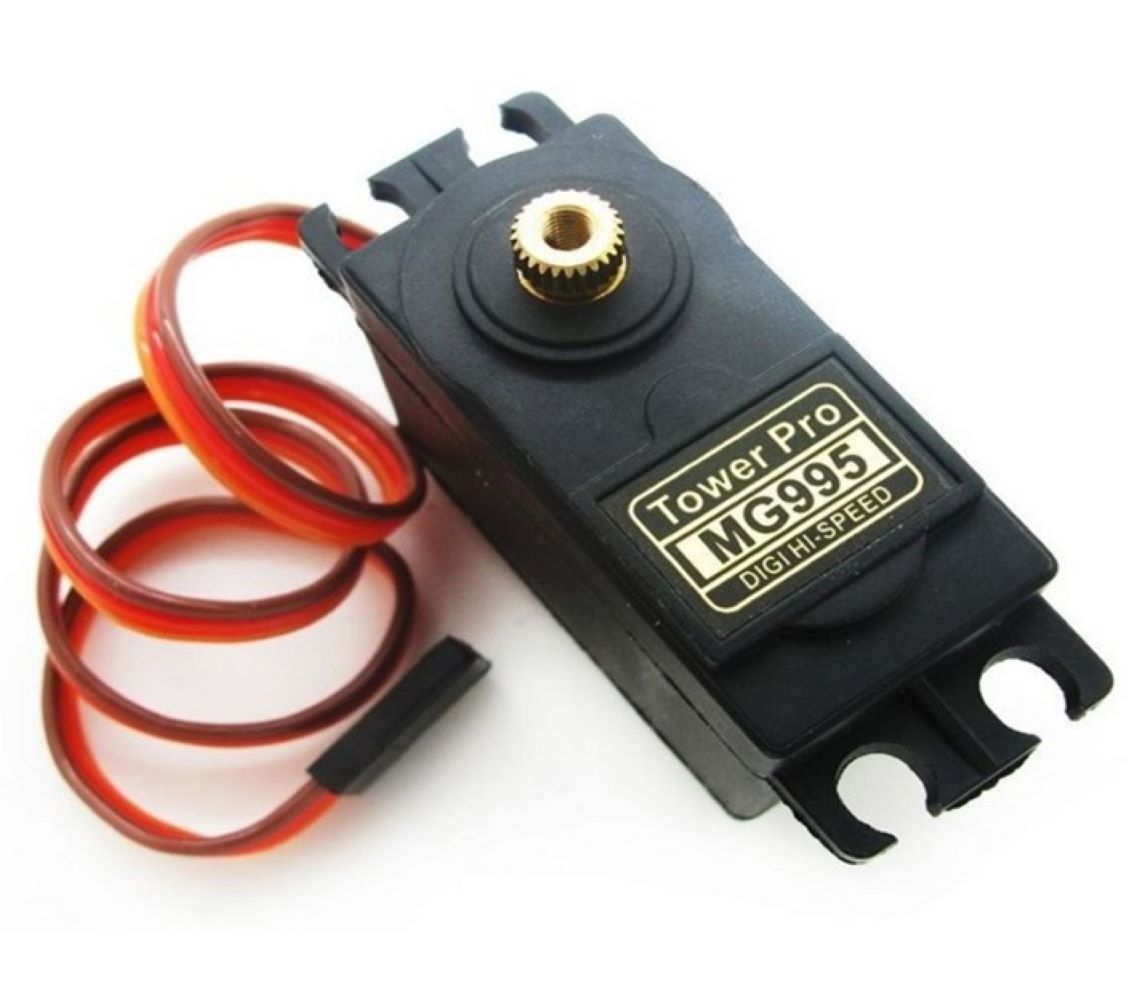

| Item Type: | TowerPro Servo Motor |
|---|---|
| Model Series: | MG Series |
| Rotation (Degree): | 180 |
| Torque Rating (kg-cm): | 10 to 12 |
| Model No: | MG995 |
| Operating Voltage (VDC): | 4.8 ~ 7.2 |
| Operating Speed @4.8V | 0.20sec/60° |
| Operating Speed @6.6V | 0.16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 10 |
| Stall Torque @6.6V (Kg-Cm) | 12 |
| Operating Temperature (°C): | -30 to 60 |
| Gear Type | Semi-Metal |
| Servo Plug Type | JR |
| Cable Length (cm): | 30 |
| Length (mm): | 40.5 |
| Width (mm): | 20 |
| Height (mm): | 44 |
| Weight (g): | 55 |
