Description

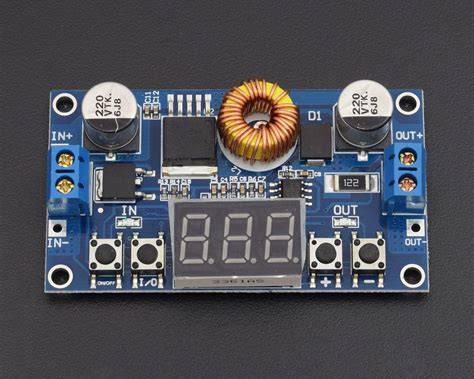

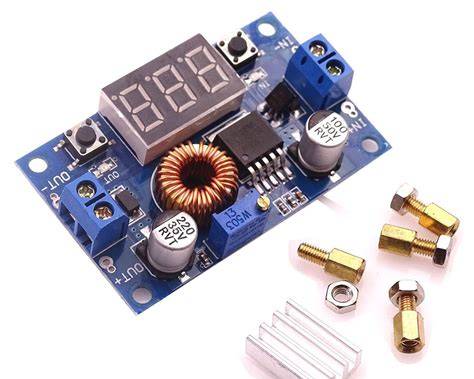

The XL4015 5A DC-DC Buck Converter is an adjustable step-down power module designed to convert a higher DC input voltage into a lower regulated output voltage. The XL4015 regulator operates at a fixed 180 kHz switching frequency and supports up to 5A constant output current under appropriate conditions.
Key Features
- Adjustable DC step-down output
- Up to 5A constant output current
- 180 kHz switching frequency
- Input voltage: 8V–36V DC
- Adjustable output: 1.25V–32V
- Efficiency: up to 96%
- Built-in thermal shutdown
- Built-in current limiting
- Output short-circuit protection
- Compact solution for DC power regulation
Applications
Suitable for UAV/drone electronics, embedded systems, instrumentation, LED power supplies, telecom/networking equipment and other DC voltage regulation applications where the required output voltage is lower than the input voltage.
Note: The above specifications are based on the XLSEMI XL4015 datasheet. Exact specifications can vary between different XL4015 module boards, so the actual module configuration should be confirmed before purchase.
SEO Title: XL4015 5A DC-DC Buck Converter | Adjustable Step-Down Module
SEO Description: Buy XL4015 5A DC-DC Buck Converter with adjustable 1.25V–32V output, 8V–36V input, 5A output capability and built-in protection features.
| Parameter | Specification |
|---|---|
| Module Type | DC-DC Buck / Step-Down |
| Input Voltage | 8–36V DC |
| Output Voltage | 1.25–32V adjustable |
| Output Current | Up to 5A |
| Switching Frequency | 180 kHz |
| Efficiency | Up to 96% |
| Protection | Thermal shutdown, current limit, short-circuit protection |
| Controller | XL4015 |
