₹2,419.00 (excluding GST)

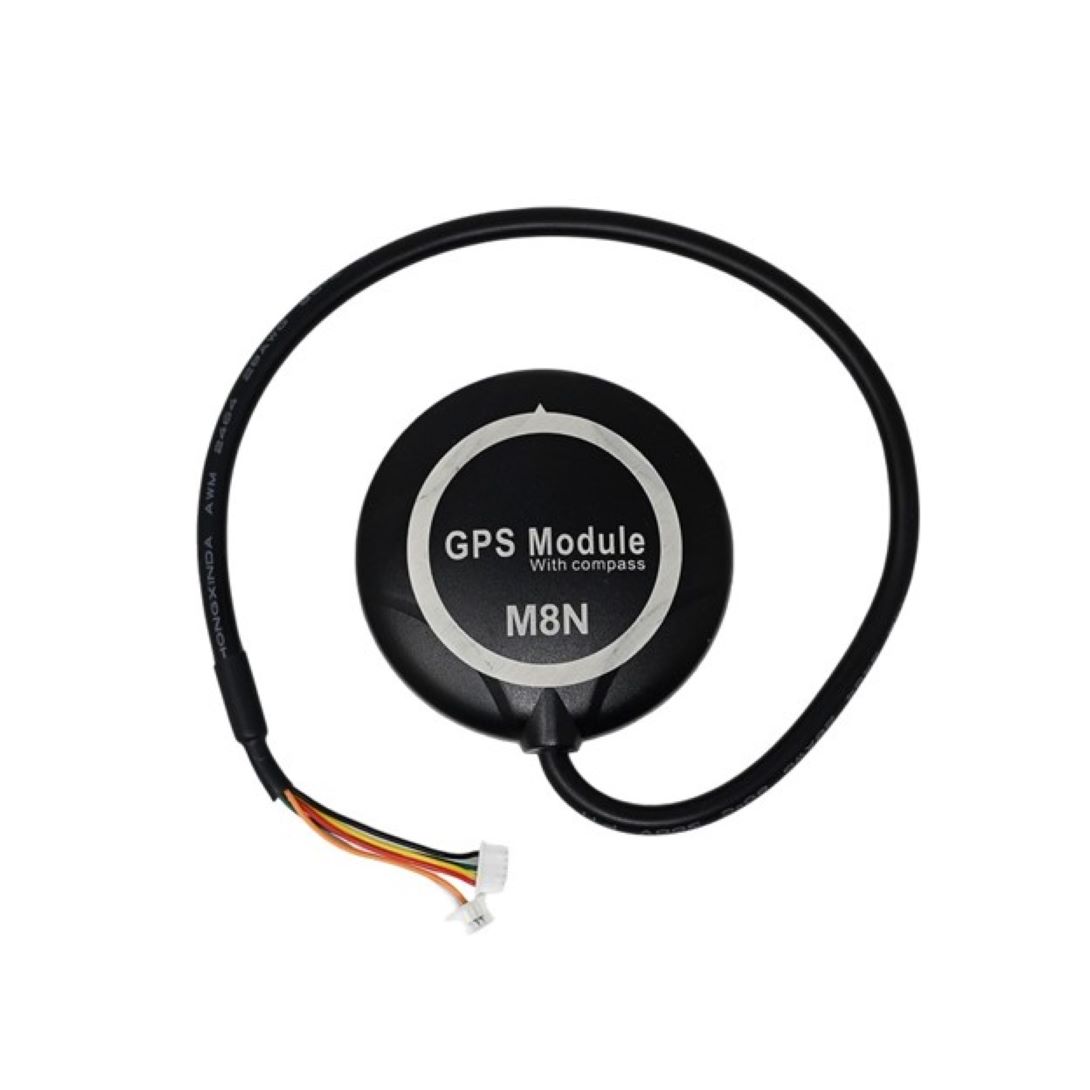

This is a new generation NEO-M8N High Precision GPS Module with Built-in Compass for APM FC with onboard Compass, low power consumption, and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more Anti-jamming Active CW detection and removal. Extra onboard SAW band passes filter (NEO-M8N/Q). Data logger For position, velocity, and time (NEO-M8N). With a sticker, it is easy and quick to install.
Â
| Supply voltage | +3.5V~+5.5V |
|---|---|
| Avg Cold Start Time (s) | 38s average |
| Hot Start Time | 1s average |
| Item Type | GPS Module |
| Material | Plastic |
| Operating Temperature (C) | -40 to +80C |
| Tracking Sensitivity (dBm) | -161dBm |
| Additional Specs. | Capture sensitivity: -148dBm, Capture Time: 0.1s Average |
